Xtreme Performance - 230mm Stum Keramisk Tvåskivig Kopplingskit Med Svänghjul 1800Nm

Xtreme Clutch

RB25DET, RB25DEH, RB26DETT, RB25DE

I lager

2-4 dagar

€ 1,827.20
{{ price }}
Kundrecensioner

Hjälp andra att välja rätt. Var först med att skriva en recension!

Skriv en recension
Taggar Twin plate
Artikelnr: ACS-KNI23582-2E

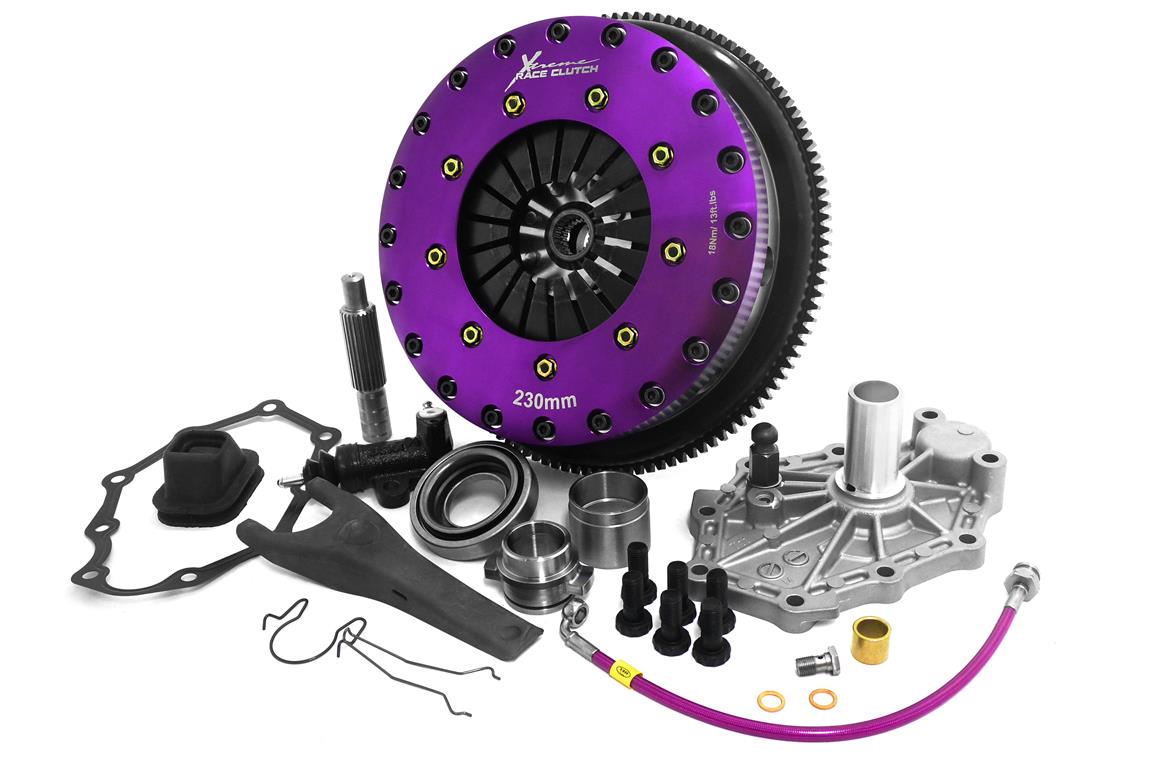

Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.



The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.



Product Features:

  • Torque capacity 1800Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
  Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

Fits the following models:

- NISSAN/SKYLINE (R34)/2.5/1998.05-2002.08/RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2002.08)
- NISSAN/SKYLINE (R34)/2.5/1998.06-2006.01/RB25DET 2498 Petrol 187 kW 254 BHP (1998.06 - 2006.01)
- NISSAN/SKYLINE (R34)/2.5 4x4 (ENR34)/1998.06-2000.07/RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
- NISSAN/SKYLINE coupe (R32)/2.6 Twin Turbo 4x4/1989.04-1993.06/RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06)
- NISSAN/SKYLINE coupe (R33)/2.6 Twin Turbo 4x4/1994.07-1999.09/RB26DETT 2569 Petrol 206 kW 280 BHP (1994.07 - 1999.09)
- NISSAN/SKYLINE coupe (R34)/2.5 4x4/1998.06-2000.07/RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
- NISSAN/SKYLINE coupe (R34)/2.5 Turbo/1998.05-2006.01/RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2006.01)
- NISSAN/STAGEA (WC34)/2.5/1996.09-2001.10/RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)
- NISSAN/STAGEA (WC34)/2.5 AWD/1996.09-2001.10/RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)
- NISSAN/STAGEA (WC34)/2.5 Turbo AWD/1996.09-2001.10/RB25DET 2498 Petrol 173 kW 235 BHP (1996.09 - 2001.10)
- NISSAN/STAGEA (WC34)/2.6 Twin Turbo/1996.09-2001.10/RB26DETT 2569 Petrol 206 kW 280 BHP (1996.09 - 2001.10)



----------------
Guider & Info

Newtonmeter 1830 Nm
Bilmärke Nissan
Motorkod RB25DE
Motorkod RB25DEH
Motorkod RB25DET
Motorkod RB26DETT
