TMC01 - Tire / Single Temp Monitoring - Cabled
CANchecked
Sensor
Kundrecensioner
Hjälp andra att välja rätt. Var först med att skriva en recension!

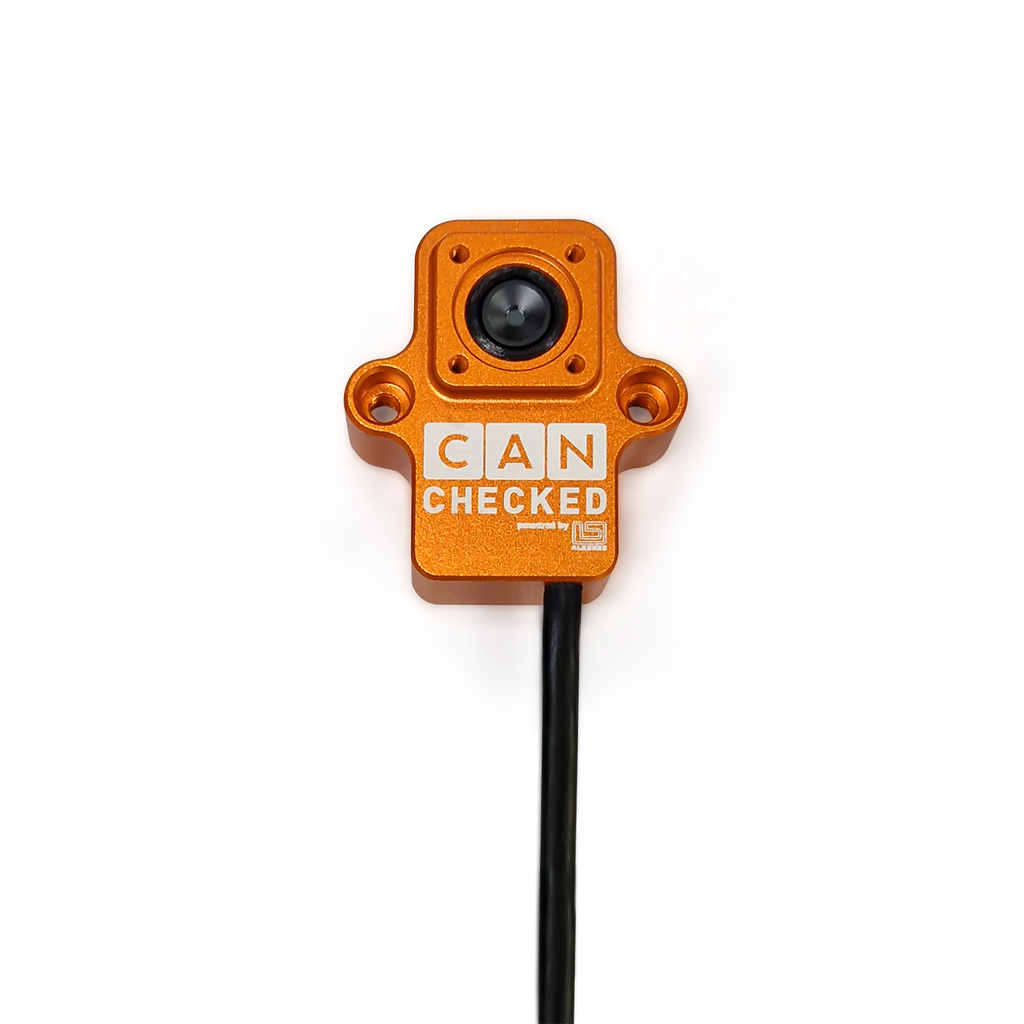

Skriv en recensionCANchecked Tire Temperature Sensor - TMC01
Enhance your racing or high-performance setup with accurate, real-time temperature data. This sensor provides comprehensive insights across multiple channels, designed for the demands of motorsport environments.
Key Features
- Temperature Range: -40 to +300°C with ±1°C accuracy
- Multi-Channel Customization: Up to 16 configurable channels for tailored data
- Field of View Options: 110° standard, optional 55° for focused measurements on request
- Compact and Durable Design:
- Size: 45.5 x 25.5 x 12 mm
- Weight: 25g
- Housing: Aluminum or polyamide, rated IP66 for rugged conditions
- Optional Protecting Lens: Additional lens option for enhanced durability and protection
- Flexible Power Input: Operates on 5–20V with an adjustable refresh rate up to 64 Hz
- Seamless CAN Integration:
- Supports CAN 2.0A and 2.0B standards
- Adjustable bit rates and CAN termination options
- Standard CAN-ID configurable for tire (0x310) or brake (0x210) data
- Data Precision:
- -200°C offset
- 0.1°C per bit resolution for high-accuracy readings
- Easy Installation:
- Includes 0.5m AWG22 cable and DTM04-4P connector
- Built for Performance: IP66 rating ensures resilience against harsh environments
Conclusion
Ideal for racing and performance testing, this sensor empowers you with actionable data for optimizing handling, braking, and tire management.
----------------
